Omega Steel Sheet Piling Omega sections

Omega sheet pile for beach erosion protection

Omega-type Sheet Piles

OMEGA PILES have higher stiffness compared to U-type sheet piles, as the interlocks are at the outermost part of the sheet piles, as far away from the neutral axis as possible.

Features and advantages
*Suitable for locations where space is restricted, as sheet piles are installed along the same line,
*Can be produced in wider sections than the U-type sheet piles,
*Light weight and cost effective,

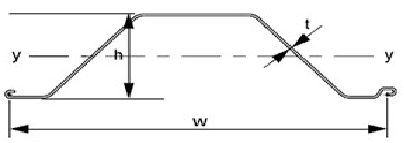

*Sizes available: from 4-16 mm thick, 600-1,600 mm wide, and section modulus from 183-4,600 cm3/m,
*Can be produced as per customer’s own design.

Steel Grade: S275,S355,S390,S430,SY295,SY390, etc.

Standard : EN10248, ASTM A-328,JIS A 5523 , JIS A 5528

Detailed Product Images

Applications

Omega sheet pile is often used for beach erosion protection, used to stablize ground slopes, especially roads, and used to support trenches and other excavated walls and cofferdams. When the height of the wall is less than 3 meters, it is usually cantilevered. However, for larger wall heights, the omega sheet piles usually uses one or more anchors to anchor it.
